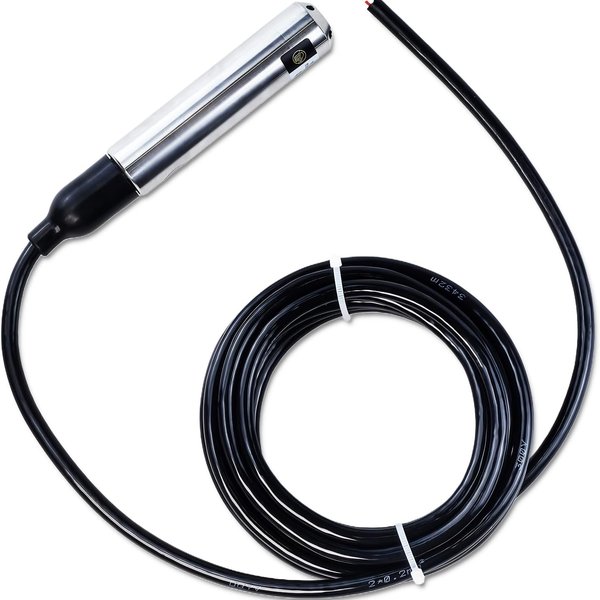

MirAqua Submersible Pressure Level Sensor
Sensor de Nivel por Presión Sumergible MirAqua
Industrial precision for difficult tank geometry
Submersible hydrostatic pressure sensor for cisterns where non-contact measurement is difficult. The probe measures water-column pressure and can provide continuous level data across many tank shapes. Installation and calibration depend on depth, venting, cable routing and the specific tank environment.
Specifications
- Sensor Type
- Hydrostatic pressure (submersible)
- Material
- Stainless-steel probe with submerged signal cable
- Compatible Tanks
- Useful for concrete and irregular cistern geometries
- Controller
- Connected controller for level history and alerts
- Maintenance
- Probe inspection/cleaning may be needed in hard or sediment-laden water
What's Included
- Submersible pressure probe
- Signal cable
- Controller enclosure
- Mounting/routing hardware
- Dashboard access
- Alert configuration
- Professional installation in the Los Cabos service area
How It Works
Hydrostatic pressure rises with the height of the water column above the probe. MirAqua calibrates the pressure reading to the tank depth so the controller can estimate level continuously.
Best For
Pressure sensing is useful for concrete cisterns, deeper tanks and installations where internal structures or access make a clean ultrasonic measurement difficult.
The Tradeoff
The probe is submerged, so it can be exposed to mineral scale or sediment. Periodic inspection during cistern service can help maintain reliable readings. For installations where keeping the sensor out of the water is a priority, ultrasonic sensing may be preferable when the tank geometry allows it.
